5th Axis Rotary Table Series
Cradle Harmonic 5th Axis Series
Product Features
Modular Structure Design
Its unique modular combined application mode can realize the 4th axis function, and can also achieve 5th axis function through cooperating with the 4th axis.
Built-in Oil Circuit & Band-Type Brake Construction
The hidden oil circuit design gives it simple and beautiful appearance, while the powerful band-type brake makes its cutting more stable.
VERO-S Quick-Change Pallet System
It has a built-in Schunk VERO-S quick-change pallet system which occupies no space and integrates with the motor to realize rapid pallet, positioning and changing of parts.
High Torque
Its P-type gear of the harmonic structure can provide greater meshing quantity, and can achieve stable output at larger torque combined with the servo motor and the large reduction ratio construction.
Wide Applications
It is designed with a central through hole to
facilitate wiring and air pipe coupling. Its IP67 waterproofing grade can get adapt to various harsh conditions.
facilitate wiring and air pipe coupling. Its IP67 waterproofing grade can get adapt to various harsh conditions.

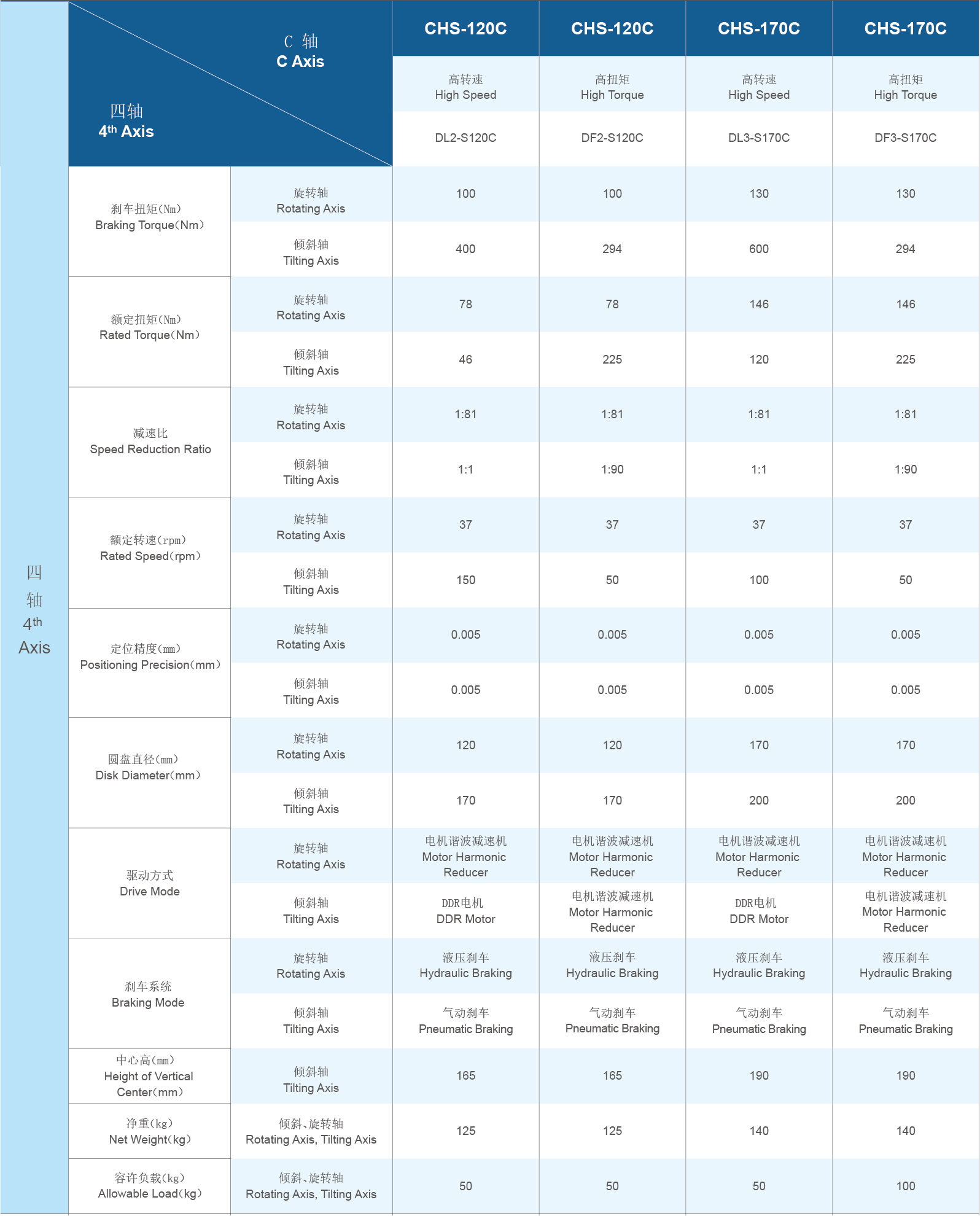

Product Parameters

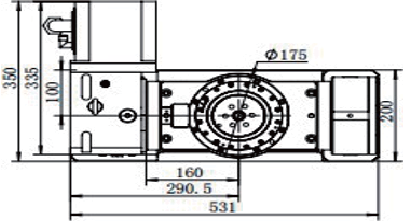

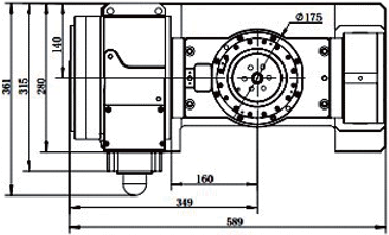

Product Dimemsions
